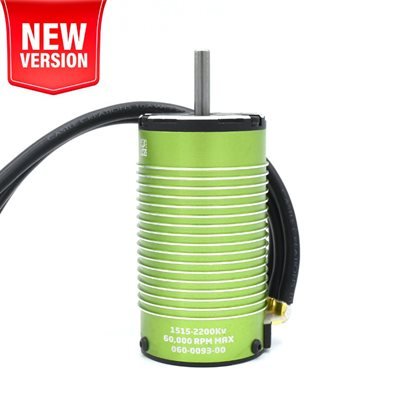

CASTLE 1515 SENSORED MOTOR - 2200KV V2

DESCRIPTION

• SPECIFICATIONS

• MORE FEATURES

• PRODUCT REVIEW(S)

Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products is meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we have ever produced! The rotor and stator have been completely redesigned to improve magnetic flux. This results in higher efficiency, smoother start-up, reduced temperatures, and longer run times!

Note: 011-0130-00 Rotor Replacement is NOT compatible with the V2 motor. A new rotor replacement will be available in the future. Check back here for updates.

1515-2200Kv V2 FEATURES:

• Input Voltage range: 2s-6s LiPo

• Redesigned rotor and stator assemblies.

• Reduced magnetic cogging, producing less residual drag brake.

• Increased efficiency, resulting in lower temperatures and longer run times.

• Smoother start-up, reducing cogging or stuttering when starting from a stop.

• Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.

• High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets

• Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings

• Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors

• High-Performance 0.2mm Steel Lamination Stacked Stator

• Oversized, low-resistance, gold-plated solder tabs

• Sensor board with High Quality Temperature-Stabilized Sensors

• T6 Aluminum CNC Machines Front/Rear End bell

• Proudly Designed and Supported in Kansas, USA.

• Backed by Castle Creations' 1-YEAR WARRANTY

Additional product details found under MORE FEATURES and SPECIFICATIONS.

1515-2200Kv V2 APPLICATIONS:

Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15 lbs.
Vehicle examples: ARRMA Typhon, Kraton, Nero, Infraction, Talion, Felony; Traxxas Sledge, Summit; HPI Savage; LOSI LMT
